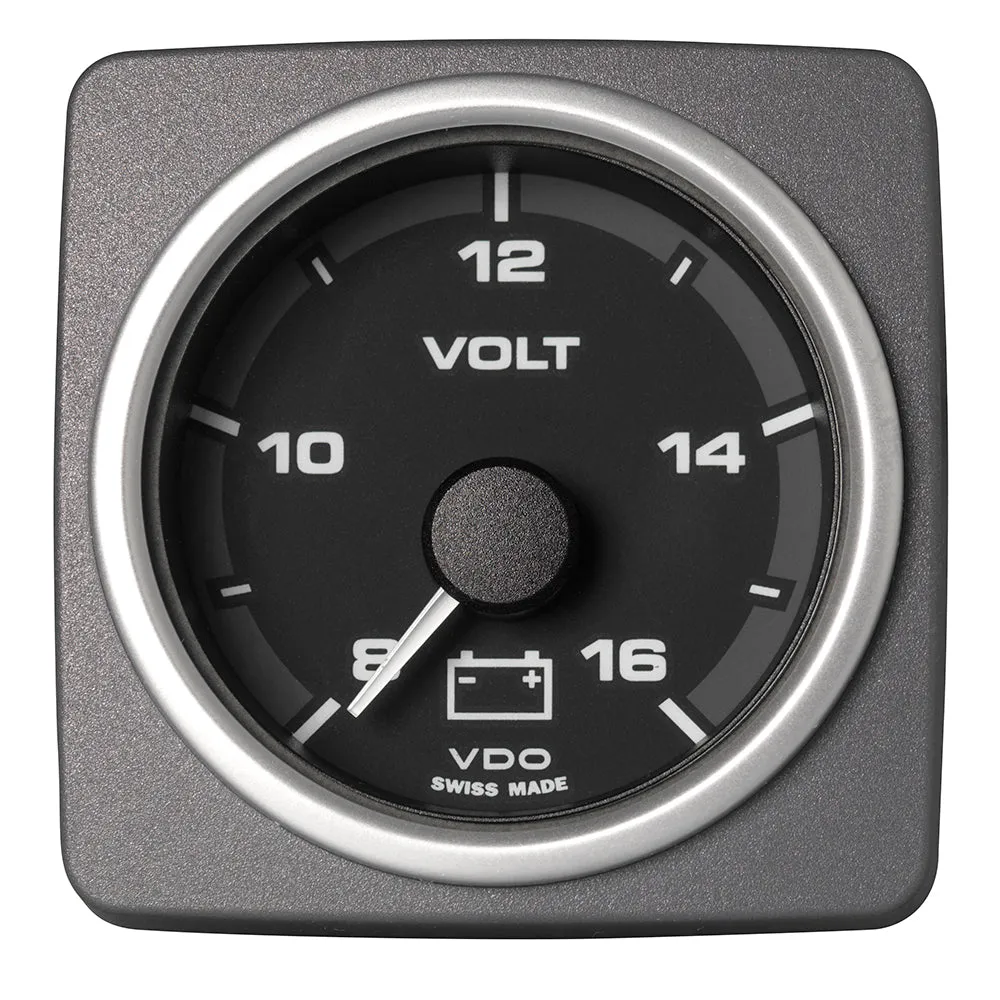

Veratron 52 MM (2-1/16″) AcquaLink Voltmeter Gauge 8-16V Range – Black Dial & Bezel

Original price was: $63.49.Current price is: $19.05.
Next

Clipper 10m Cable f/Compass Sensor

Original price was: $29.49.Current price is: $8.85.
Next Product Image

ComNav G1 Satellite Compass – NMEA 0183 – 15M Cable Included

Original price was: $1,939.99.Current price is: $299.99.

SKU: ANI349260 Categories: , Tag:
Trust Badge Image

Description

G1 Satellite Compass – NMEA 0183 with 15M Cable

Accurate Heading, Position & Rate of Turn

Features:

  • Supports both GPS and GLONASS satellites for complete redundancy
  • Heading accuracy < 0.25° rms
  • Position accuracy < 0.3m 95% confidence (DGPS)
  • An integrated 9 Axis Inertial Measurement Core (IMC technology) provides
    enhanced roll, tilt and heading stability even during momentary loss of
    satellite signals
  • G3 color display system (optional)
  • Engineered enhancements to exceed sealed IP67 rating
  • Extended 2 year warranty
  • NMEA 2000® interface
  • Heave, Pitch, Roll and Rate of Turn as standard output
  • Heading updates 1 to 20 Hz
  • BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
  • Fully compatible with on board NMEA 0183 RADAR, ECDIS, AIS, Cameras,
    SONAR, PC and Autopilots
  • Compact integrated surface mounting (Pole mount optional) IMO Compliant, Wheelmark and USCG approved
  • Pre-programmed default settings for Heading, Rate of Turn, Course over
    Ground, Lat/Long position, Time & Date
  • 15 meter serial cable standard (30 meter optional)
  • 6 meter NMEA 2000® Cable (optional)
  • CE certified for EMI and RFI immunity
  • Worldwide service

G1 satellite compass-NMEA 0183 with 15M cable. Accurate heading, position and turning rate function: support GPS and GLONASS satellites to achieve full redundancy heading accuracy <0.25°rms position accuracy <0.3m...!!!!----
