Maxwell HRC 10-8 Rope Chain Windlass 12v 5/16″ Chain 5/8″ #HRC10812V

Original price was: $2,879.20.Current price is: $299.99.

SKU: ANI320686 Category: Tag:
Trust Badge Image

Description

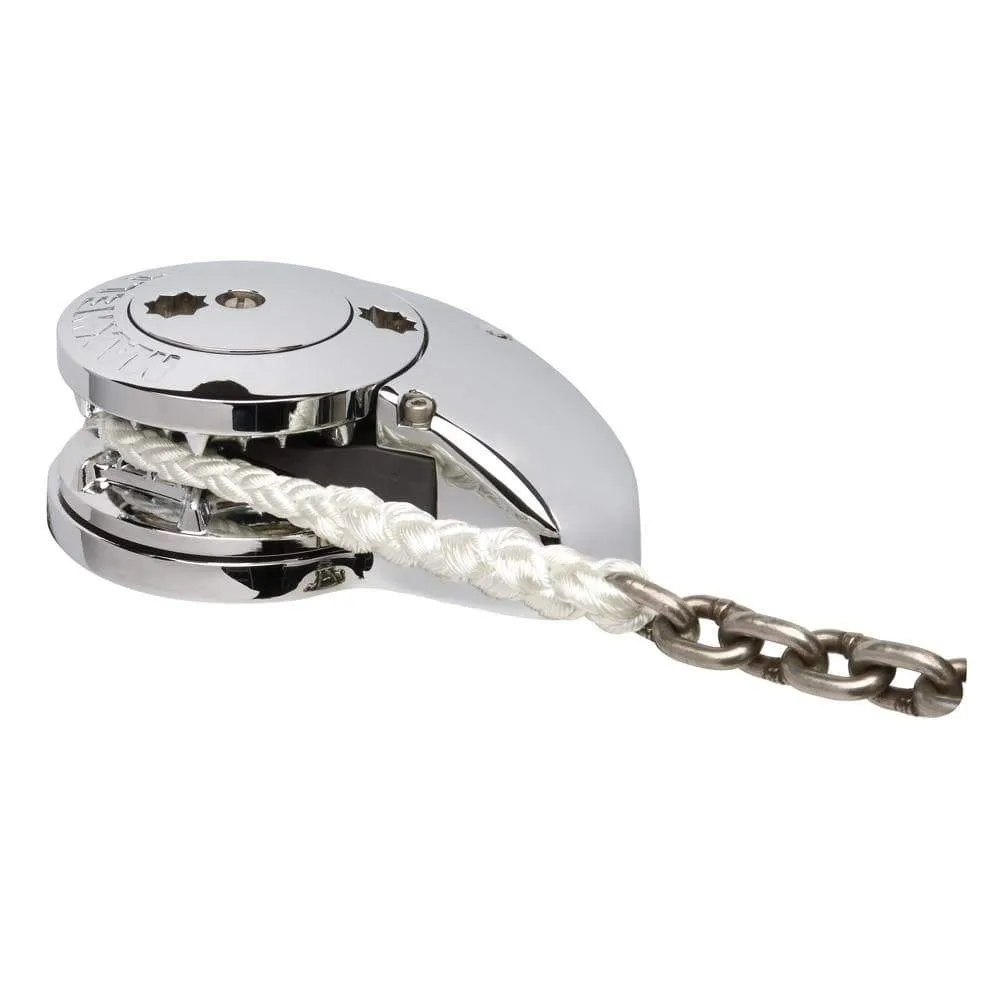

Maxwell Winches HRC10812V Windlass & Anchor Winches

HRC 10-8 Horizontal Windlass 5/16″ Chain, 5/8″ Rope, 12V, with Capstan

Designed for boats up to 45 feet, the HRC10-8 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell’s previous, fully automatic rope / chain anchor winches.

Kit Includes

  • Windlass
  • On/Off Breaker Panel

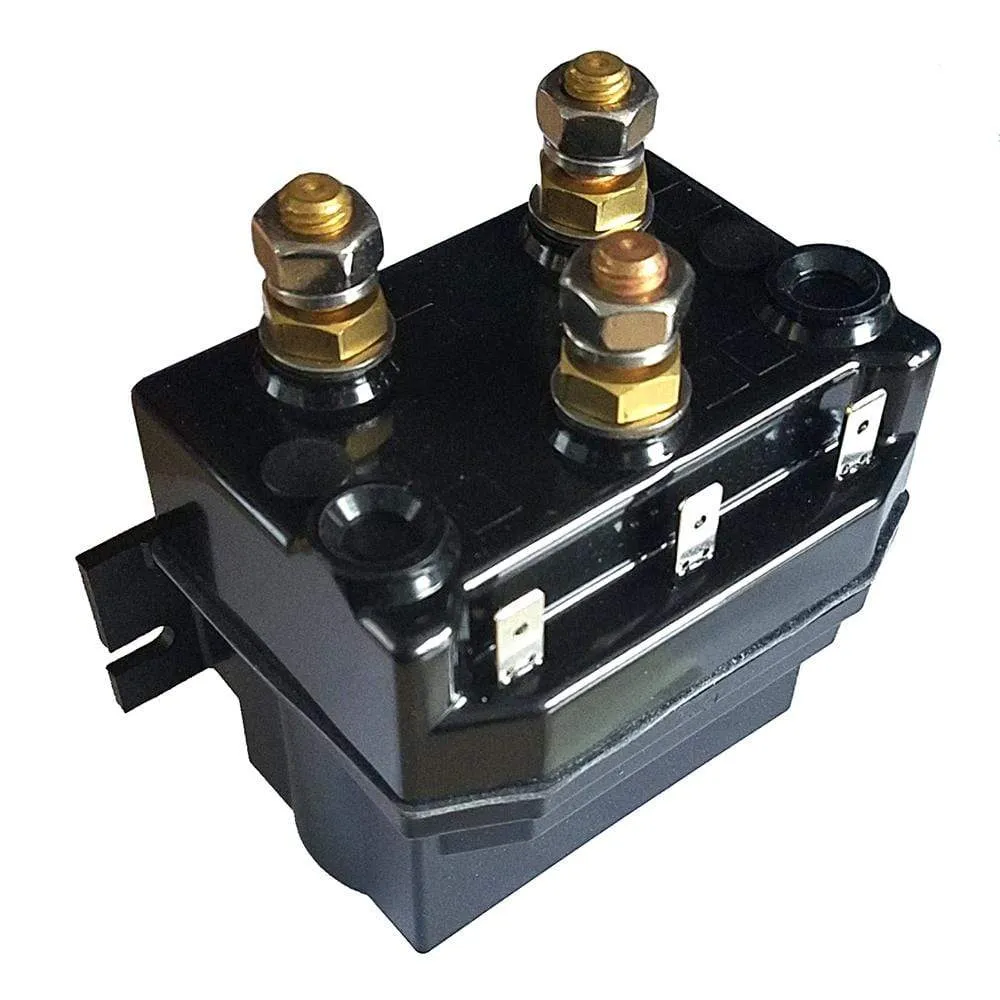

  • Reversing Solenoid

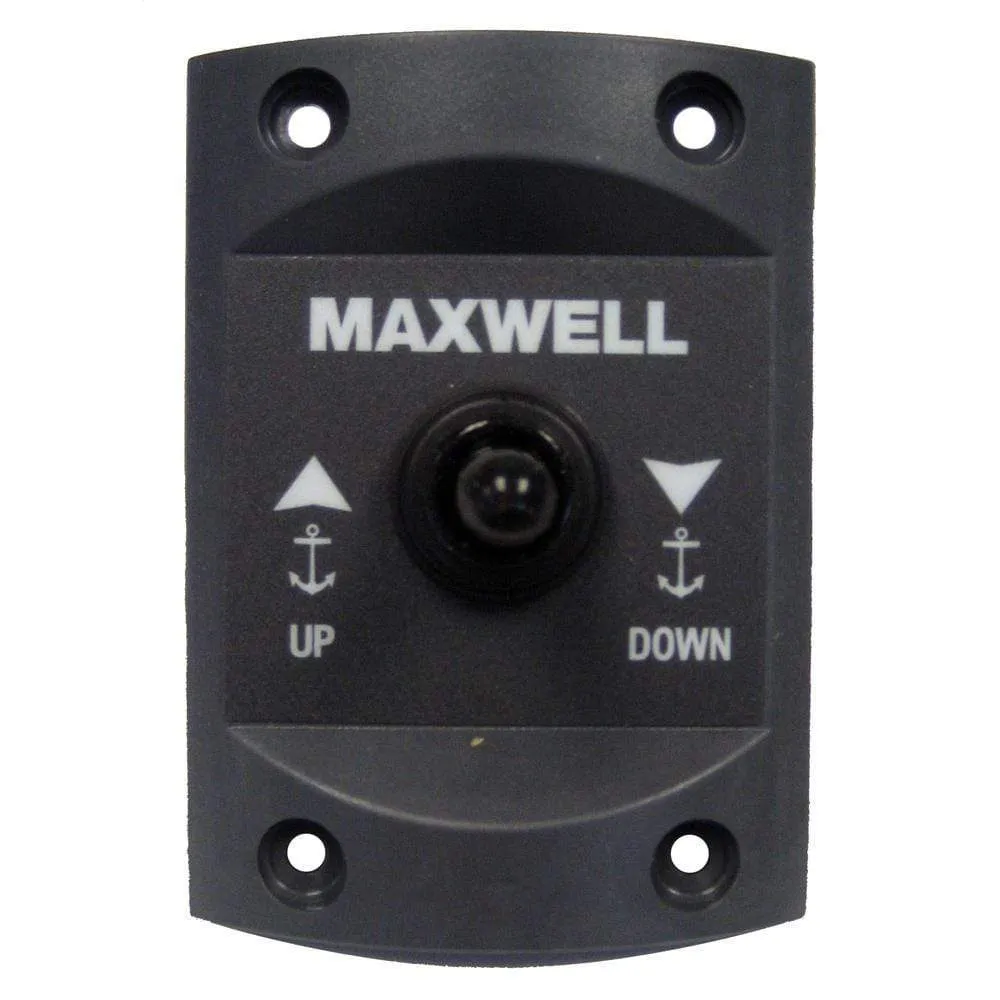

  • Up/down Panel Switch
  • Clutch Release Handle

Features

  • The HRC10-8 is Maxwell’s fully automatic rope/ chain or all chain horizontal windlass
  • Designed to effortlessly retrieve and deploy 8mm (5/16″ ) chain and 16mm (5/8″ ) three strand or 8-brait (plait) rope.
  • The HRC 10-8 has a patented uniquely designed chain wheel will accommodate ANY 5/16″ or 8 mm marine grade chain spliced to 5/8″ rope.
  • The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck
  • Case Material: Anodized Aluminum
  • The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section.
  • This two piece watertight case allows for quick and easy, on-deck,routine maintenance.
  • Simple ” bolt down” installation ensures effortless and rapid on-deck installation and set up.
  • The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).
  • The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series.
  • The unique Maxwell ” wrap around” horizontal chainwheel ensures that more than 90x of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.
  • High quality Stainless Steel chainwheels
  • The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.
  • The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope / chain rode into and out of the anchor locker.
  • Cone type clutch/brake mechanism permits manual, “free fall” anchoring and emergency crank recovery of the rode and anchor if required.
  • The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel.
  • Exclusive Maxwell 3 YEAR Limited Warranty
    • Specifications

      • Maximum PUll: 1540 lbs
      • Chain Short Link: 5/16″ or 8mm
      • Chain Speed (Anchor Retrieval): 79 ft per Minute
      • Rope Speed (Anchor Retrieval): 65 ft per Minute
      • Rope Size (Nylon 3 strand or 8 Plait): 5/8″
      • Power Supply (DC): 12VDC
      • Motor Power: 1000 Watts
      • Net weight: 42 lbs

      Specifications:

      Amps – Draw = NONE
      Boat Length – Max (Feet) = NONE
      Chain – Type = NONE
      Freefall = NONE
      Rope Diameter (Inches) = 5/8″
      Vertical/Horizontal = Horizontal

      Normalized SKU: HRC10812V

      UPC Code: 9414761103121
