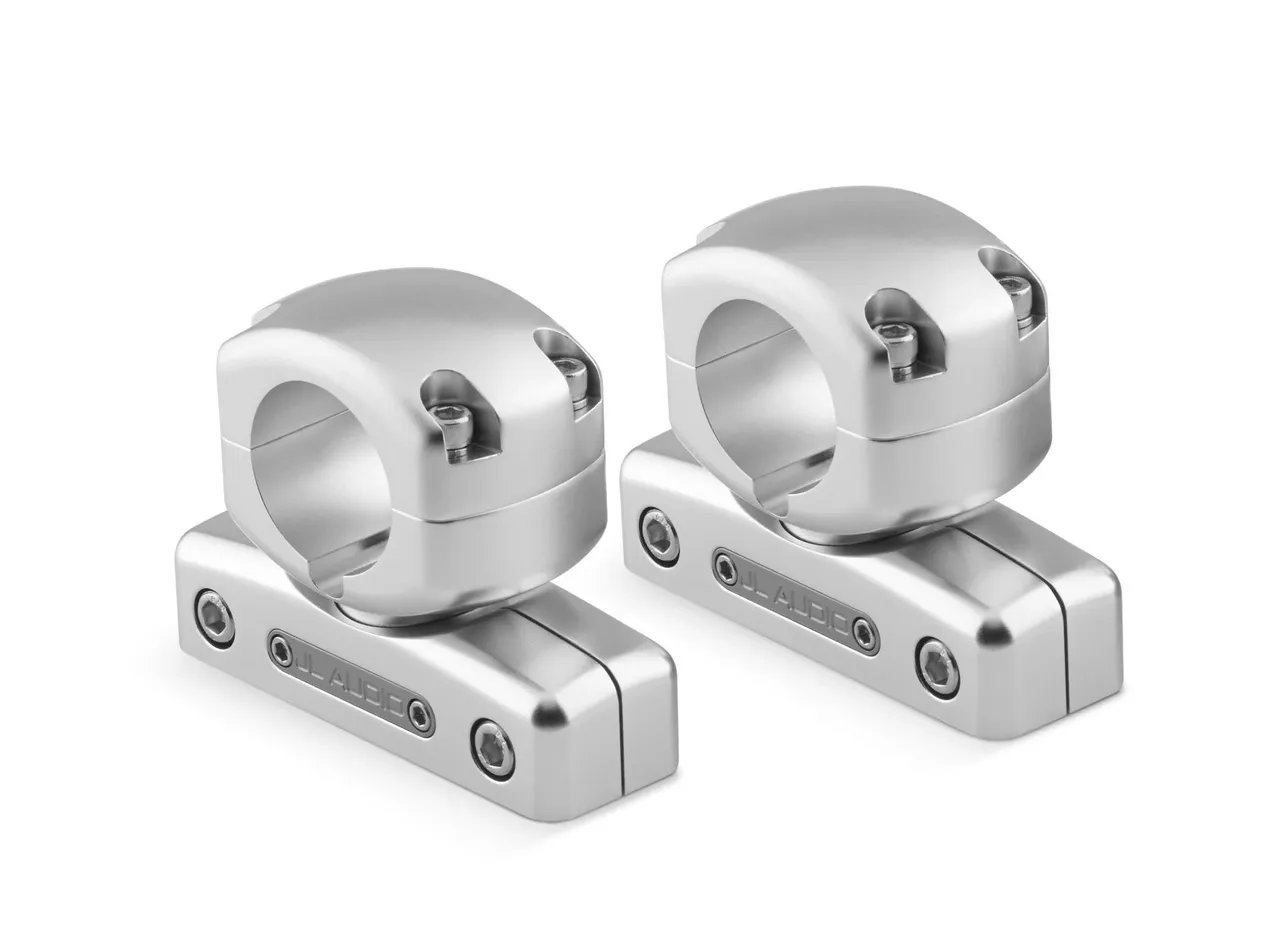

JL Audio 1.660in Pipe Swivel Mount Brackets for ETXv3 Series

Original price was: $211.69.Current price is: $52.92.
Next Product Image

Poly-Planar 4CH, 120W, Audio Amplifier w/Volume Control

Original price was: $49.49.Current price is: $14.85.

SKU: ANI355667 Categories: , Tag:
Trust Badge Image

Description

4 Channel,120watt, Audio Amplifier with volume control
Part Number: ME60

The ME60 is a four channel 120 Watts RMS audio amplifier of delivering up to 30W RMS per channel. It has a compact, water resistant design that allows for flexible mounting possibilities, and makes it simple to expand the audio system capabilities for any installation.

Uses:

  • To add additional loudspeakers to a current audio system
  • To provide amplification for a separate audio zone
  • As a stand-alone system amplifier for any audio source
  • To power standard speakers or speakers and subwoofer

Features

  • Powers up to (8) 4ohm speakers
  • Internal distortion limiting circuits
  • Dedicated gain level control
  • External volume control with ON/OFF switch included
  • Water resistant design for marine use
  • Rear channels switchable from full range to powered sub out.

Specifications

  • Speaker Impedance:2-8 ohm
  • Output Power (4 ohm load) 20 Watts RMS per Channel (50W Peak):(2 ohm load) 30 Watts RMS per Channel (70W Peak)
  • Frequency Response:20Hz-40kHz
  • Low Pass Crossover:18 – 245 Hz
  • Operating Voltage:13.8V DC (10V-16V)
  • Maximum Current Draw (full power):8-10amps
  • Dimensions (approx. w x h x d):175mm x 115mm x 35mm 6.9″ x 4.5″ x 1.4″
  • Installation Clearance:250mm free space top/sides
  • Weight:1.65lbs
  • Volume Control Cable Length:290cm/114″

    It has a compact waterproof design that enables flexible installation possibilities and makes it easy to expand the audio system functions for any installation. to …!!!!—-
